    Teltonika RUTX11 router 4G LTE (RUTX11000000)
    1 525,30 zł
    1 240,08 zł netto

    Dostępność: dostępne
    Producent: Teltonika
    szt:



    Najtańsza dostawa: (pokaż wszystkie)
  • DHL (przedpłata) - 18,00 zł

  • Teltonika RUTX11 to najwydajniejsze z największą ilością funkcji oraz interfejsów urządzenie marki Teltonika. RUTX11 to dwupasmowy, bezprzewodowy router 4G LTE, dual SIM z technologią Wave-2 802.11ac. Wyposażony jest w 4 gigabitowe porty Ethernet, moduł Bluetooth LE, dwuzakresowe AC WiFi, port USB, anteny Bluetooth oraz GNSS (GPS), a także dwa sloty na kartę SIM.

    RUTX11 posiada czterordzeniowy procesor ARM Cortex A7 o taktowaniu 717MHz i 256 MB pamięci RAM DDR3. Router zawiera oprogramowanie RutOS i funkcje bezpieczeństwa, OpenVPN, IPsec, Firewall, Auto Failover, kontrola SMS oraz wsparcie RMS. To urządzenie jest idealne do zaawansowanych aplikacji przemysłowych i korporacyjnych. Urządzenie zamknięte jest w aluminiowej obudowie.

    Dzięki funkcji SMS management możliwe jest m.in. restartowanie urządzenia, łączenie i sprawdzanie statusu połączenia. Natomiast funkcja failover nie tylko zapewnia bezawaryjność połączenia w przypadku, gdy jedna z kart SIM zostanie rozłączona, ale także umożliwia obniżenie kosztów poprzez ustawienie opcji failover raoming, która przełącza połączenie na drugą kartę SIM w sytuacji gdy pierwsza z kart rejestruje się w sieci roamingowej i odwrotnie. Przełączanie pomiędzy SIM1 i SIM2 można również uzależniać od wielkości pobieranych cyklicznie danych (przez dzień, tydzień lub miesiąc), a także od poziomu zasięgu.

    Konfigurację routera, przywracanie i zapisywanie jego ustawień odbywa się poprzez interfejs WWW, wykorzystując do tego przeglądarkę internetową. Routerem można także zarządzać za pomocą SMS. Opcja ta jest niezwykle przydatna w sytuacji, gdy użytkownik nie ma możliwości zainicjowania połączenia VPN czy zrestartowania routera. RUTX11 pozwala także na odbieranie i wysyłanie do jednego lub wielu użytkowników GSM wiadomości tekstowych SMS.

    Najważniejsze cechy:
    • Obsługa LTE kat. 6 do 300 Mb/s
    • Wave 2 802.11ac Dual Band WiFi o prędkości do 867 Mb/s
    • Dual SIM - znacznie obniża koszty roamingu
    • 4x porty Gigabit Ethernet z funkcjonalnością VLAN
    • Port USB
    • Anteny: Bluetooth, GNSS (GPS), 2x Mobile, 2x WiFi
    • System zdalnego zarządzania Teltonika - RMS
    MOBILE
    Mobile module
    4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
    SIM switch
    2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned)
    Status
    Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply, scheduled SMS (planned), SMPP (planned)
    Black/White list
    Operator black/white list
    Multiple PDN (planed)
    Possibility to use different PDNs for multiple network access and services
    Band management
    Band lock, Used band status display
    APN
    Auto APN
    Bridge mode
    Direct connection (bridge) between mobile ISP and device on LAN
    WIRELESS
    Wireless mode
    802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
    WiFi security
    WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
    ESSID
    ESSID stealth mode
    Wireless Hotspot
    Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
    ETHERNET
    WAN
    1x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    LAN
    3x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    BLUETOOTH
    Bluetooth 4.0
    Bluetooth low energy (LE) for short range communication
    NETWORK
    Routing
    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
    NetSnapper (optional)
    Mobile connection management, data compression VPN client (not available in standard FW)
    Network protocols
    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
    VoIP passthrough support
    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
    Connection monitoring
    Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
    Firewall
    Port forwards, traffic rules, custom rules
    DHCP
    Static and dynamic IP allocation, DHCP Relay, Relayd
    QoS / Smart Queue Management (SQM)
    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
    DDNS
    Supported >25 service providers, others can be configured manually
    Network backup
    VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover
    Load balancing
    Balance Internet traffic over multiple WAN connections
    SSHFS (optional)
    Possibility to mount remote file system via SSH protocol (not available in standard FW)
    SECURITY
    Authetication
    Pre-shared key, digital certificates, X.509 certificates
    Firewall
    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
    Attack prevention
    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    VLAN
    Port based and tag based VLAN separation
    Mobile quota control
    Custom data limits for both SIM cards
    WEB filter
    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
    Access control
    Flexible access control of TCP, UDP, ICMP packets, MAC address filter
    VPN
    OpenVPN
    Multiple clients and a server can run simultaneously, 12 encryption methods
    OpenVPN Encryption
    DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    IPsec
    IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
    GRE
    GRE tunnel
    PPTP, L2TP
    Client/Server instances can run simultaneously
    Stunnel
    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
    DMVPN
    Method of building scalable IPsec VPNs
    SSTP
    SSTP client instance support
    MODBUS
    Modbus TCP slave
    ID range 1-255
    Modbus TCP master
    Supported functions 01, 02, 03, 04, 05, 06, 15, 16
    Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)
    MONITORING & MANAGEMENT
    WEB UI
    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
    FOTA
    Firmware update from server, automatic notification
    SSH
    SSH (v1, v2)
    SMS
    SMS status, SMS configuration, send/read SMS via HTTP POST/GET
    TR-069
    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    SNMP
    SNMP (v1, v2, v3), SNMP trap
    JSON-RPC (planned)
    Management API over HTTP/HTTPS
    MQTT
    MQTT Broker, MQTT publisher
    RMS
    Teltonika Remote Management System (RMS)
    SYSTEM CHARACTERISTICS
    CPU
    Quad-core ARM Cortex A7, 717 MHz
    RAM
    256 MB, DDR3
    FLASH memory
    256 MB SPI Flash
    FIRMWARE / CONFIGURATION
    WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup
    FOTA
    Update FW/configuration from server
    RMS
    Update FW/configuration for multiple devices at once
    Keep settings
    Update FW without losing current configuration
    FIRMWARE CUSTOMIZATION
    Operating system
    RutOS (OpenWrt based Linux OS)
    Supported languages
    Busybox shell, Lua, C, C++
    Development tools
    SDK package with build environment provided
    LOCATION TRACKING
    GNSS
    GPS, GLONASS, BeiDou, Galileo and QZSS
    Coordinates
    GNSS coordinates via WebUI, SMS, TAVL, RMS
    NMEA
    NMEA 0183
    Server software
    Supported server software: TAVL, RMS
    Mobile Network Geolocation
    Get approximate device location on RMS based on mobile cell tower position (without using GPS)
    Geofencing
    Configurable multiple geofence zones
    USB
    Data rate
    USB 2.0
    Applications
    Samba share, custom scripts (planned)
    External devices
    Possibility to connect external HDD, flash drive, additional modem, printer (planned)
    Storage formats
    FAT, FAT32, NTFS
    INPUT/OUTPUT
    Input
    1x Digital Input
    Output
    1x Digital Output
    Events
    SMS, Email, RMS
    POWER
    Connector
    4 pin industrial DC power socket
    Input voltage range
    9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
    PoE (passive)
    Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
    Power consumption
    16 W Max
    PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
    Ethernet
    4x RJ45 ports, 10/100/1000 Mbps
    I/Os
    1 Digital Input, 1 Digital Output on 4 pin power connector
    Status LEDs
    3x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 4x WAN status LEDs, 1x Power LED, 2.4G and 5G WiFi LEDs
    SIM
    2x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
    Power
    4 pin DC connector
    Antennas
    2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
    USB
    USB A port for external devices
    Reset
    Factory reset button
    PHYSICAL SPECIFICATION
    Casing material
    Full aluminium housing
    Dimensions
    95 x 115 x 44 mm (L x W x H)
    Weight
    456 g
    Mounting options
    DIN rail (can be mounted on two sides), flat surface placement
    OPERATING ENVIRONMENT
    Operating temperature
    -40 C to 75 C
    Operating humidity
    10 % to 90 % non-condensing
    Ingress Protection Rating
    IP30
    REGULATORY & TYPE APPROVALS
    Regulatory & Type Approvals
    CE/RED, RoHS, REACH
    Vehicle
    ECE R10 (E-mark)
    EMI IMMUNITY
    Standards
    EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0
    ESD
    EN 61000-4-2:2009
    RS
    EN 61000-4-3:2006+A1:2008+A2:2010
    EFT
    EN 61000-4-4:2012
    Surge protection
    EN 61000-4-5:2014
    CS
    EN 61000-4-6:2014
    DIP
    EN 61000-4-11:2004
    RF
    Standards
    ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1
    SAFETY
    Standards
    IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017

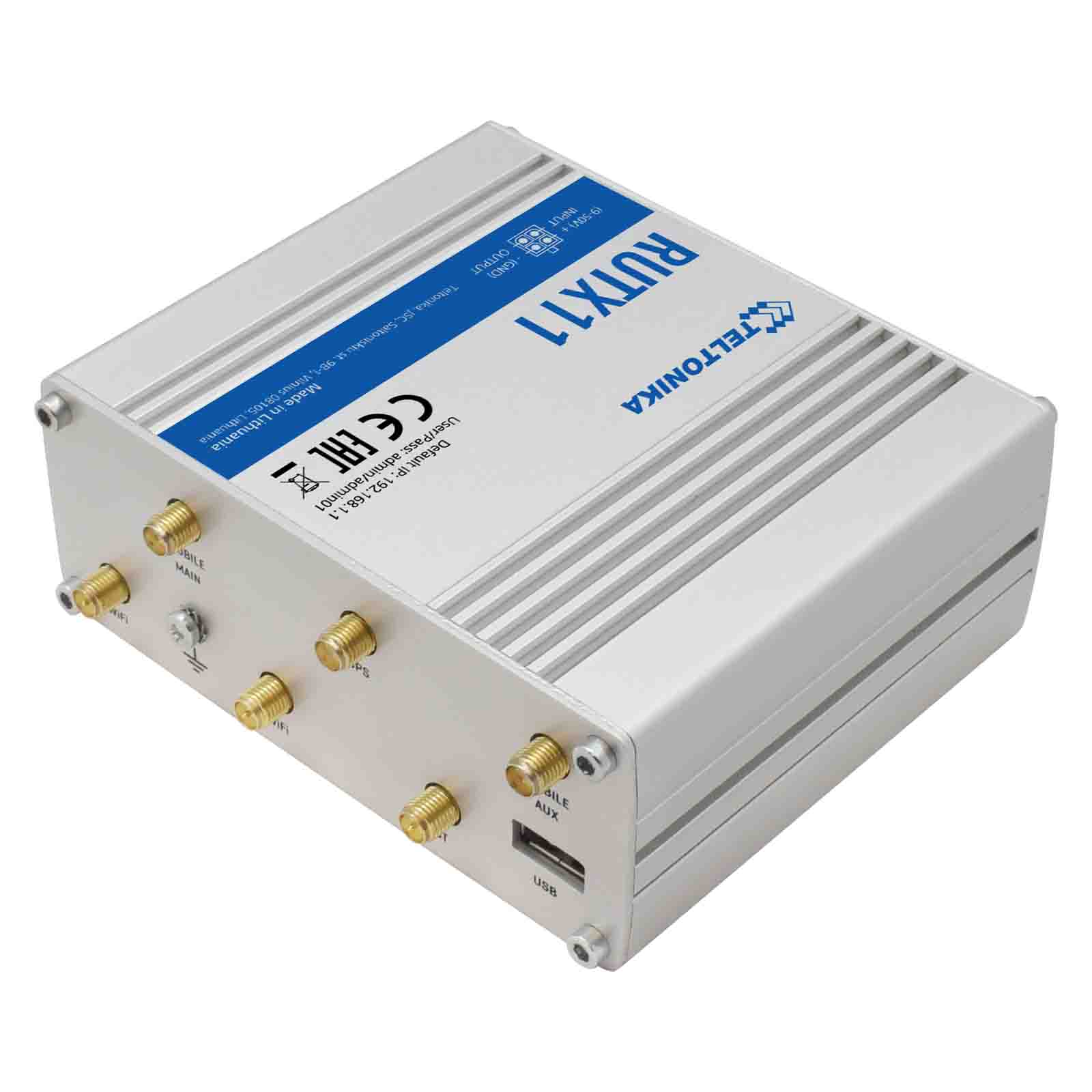

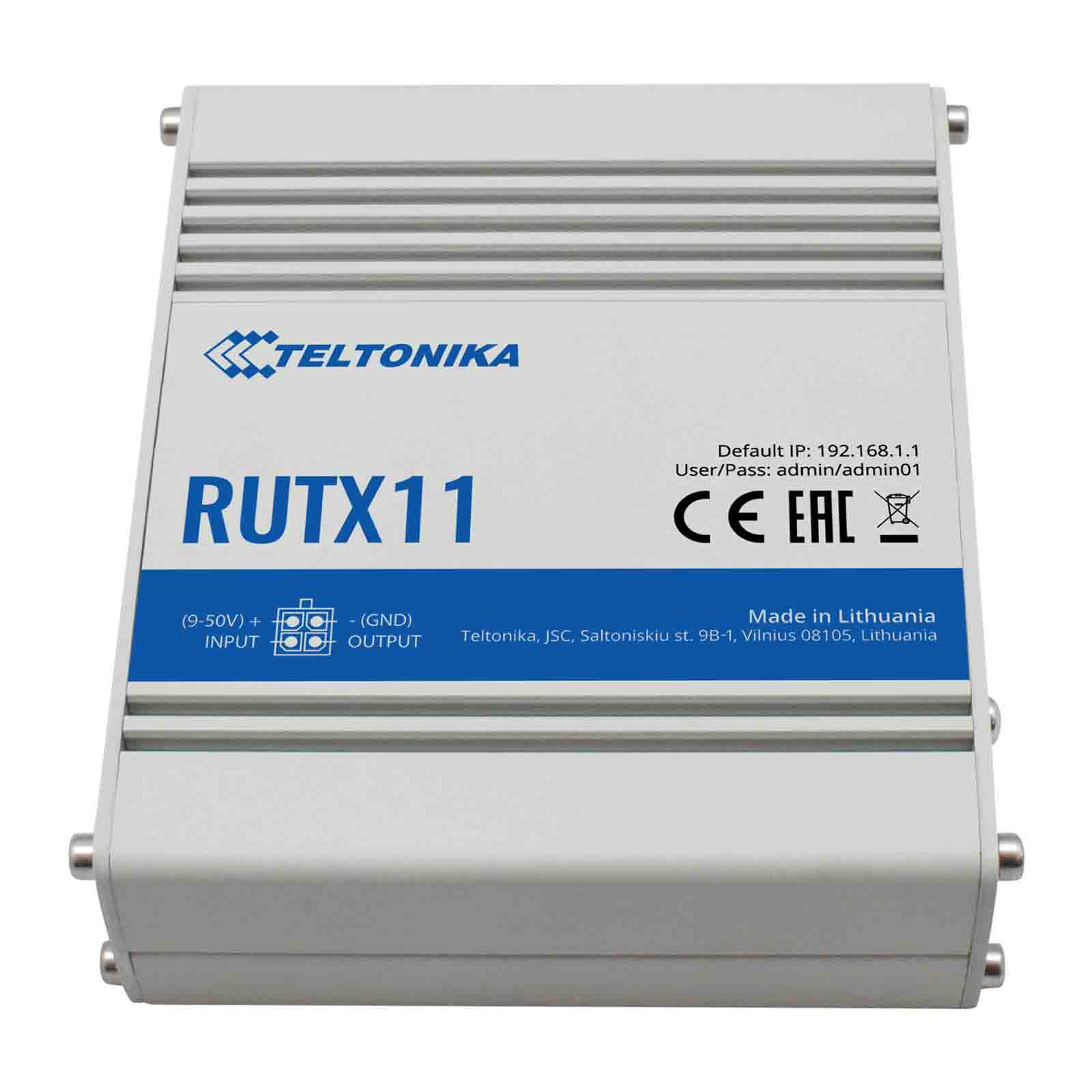

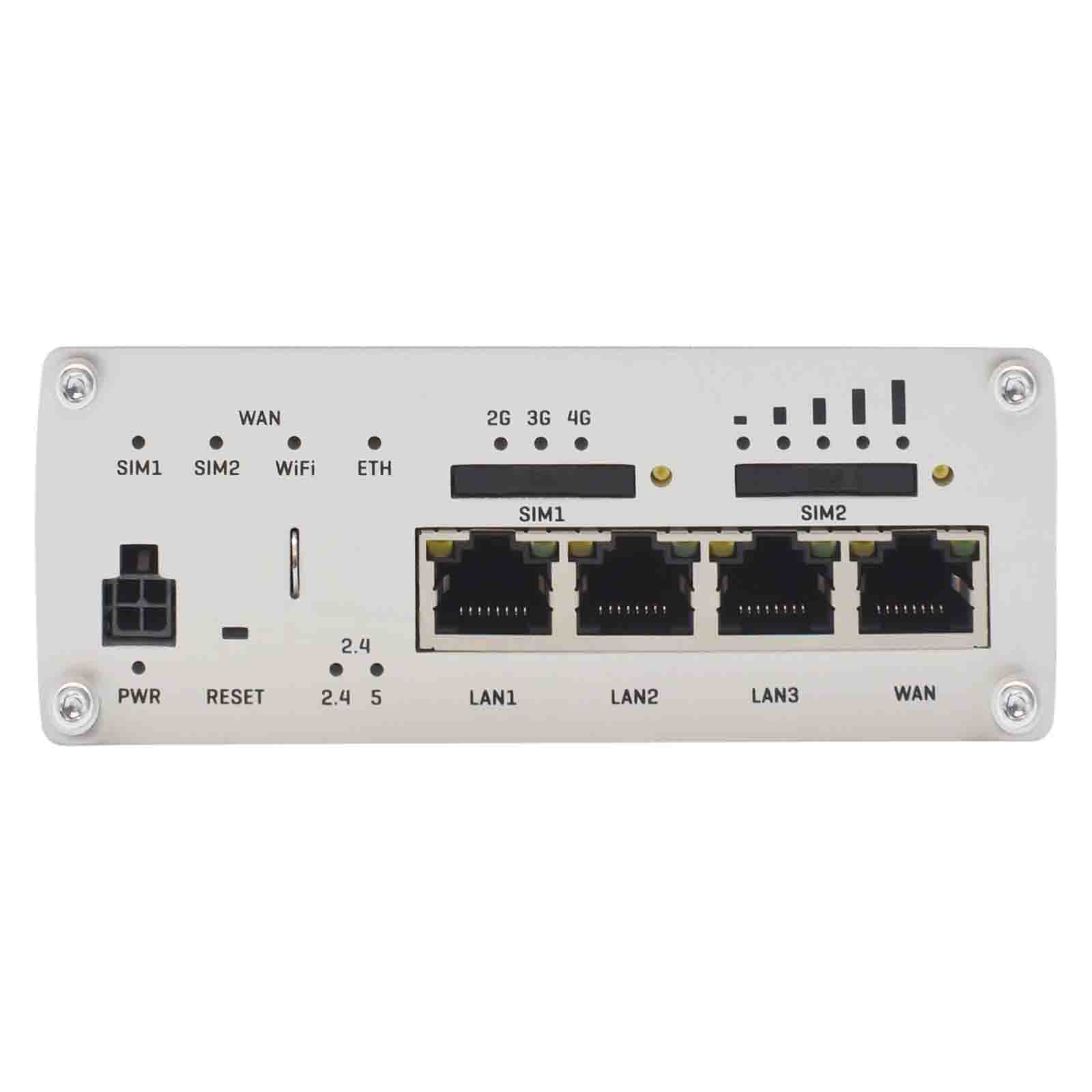

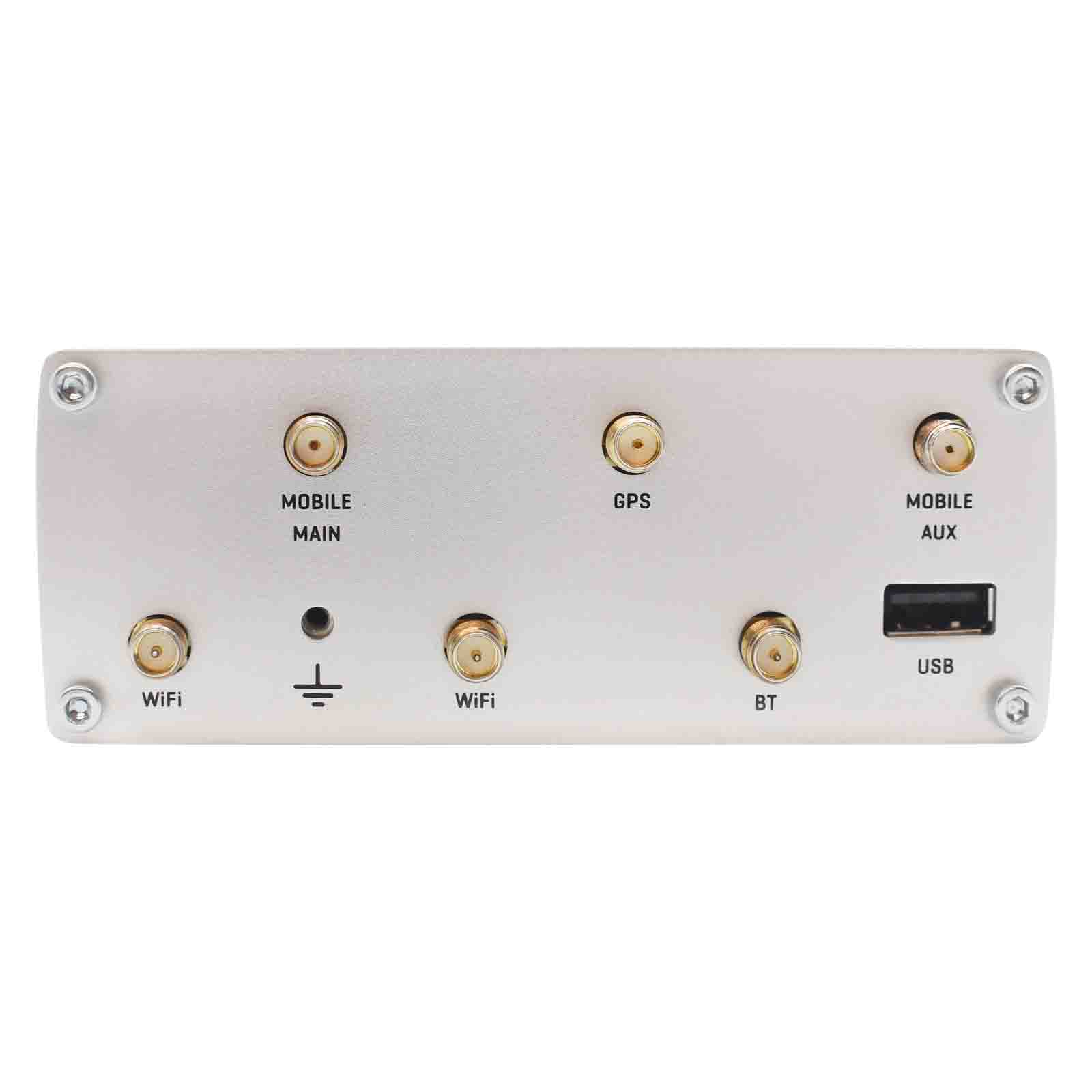

    Galeria produktu:
